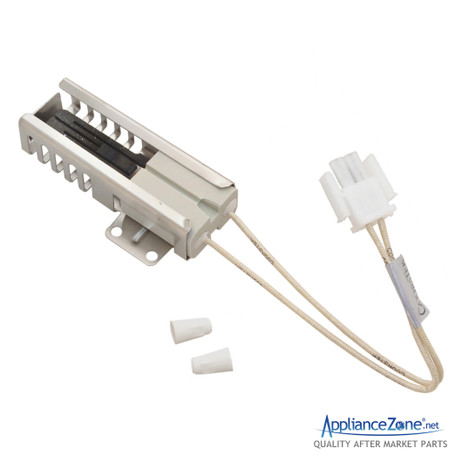

Replacement ignitor used for some Admiral, Amana, Crosley, Ikea, Jenn-Air, KitchenAid, Magic Chef, Maytag, Samsung, and Whirlpool oven models.
Directly Replaces: 74007498, 7432P075-60, 7432P106-60, 949510, AH2085070, AP4096256, EA2085070, EAP2085070, PD00002658, PS2085070.
Features:
- Draws electrical current through the oven safety valve to open it, then ignites gas burners to heat the oven to temperature.
- Has 7" leads with male two pin block.
- Includes (1) Igniter with Bracket and Lead/Plug, (2) Ceramic Wire Connectors.
Specifications:
- Material: Metal / Ceramic / Plastic.
- Electrical Specs: 3.4 - 3.6A.
- Dimensions: 3-3/4"L x 1-3/4"W x 13/16"H (Cage / Bracket); Block measures 1-1/4"L.
- Additional Dimensions: Harness and plug extend 7-7/8"L from ignitor.
Type your model number into the box to filter down the compatible models. How do I find my model number?
Don't see your model listed? Complete this form for help with finding the right part.
1 Review
-
oven igniter
fit perfect
