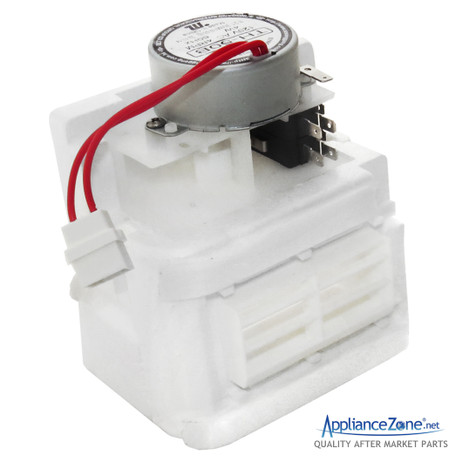

Replacement air damper and motor control used for some Crosley, Frigidaire, Kenmore, and White-Westinghouse refrigerator models.
Directly Replaces: 241600902, 240521106, 240521107, 241546902, 1062217, AH977157, AP3772850, EA977157, EAP977157, PD00000398, PS977157.
Features:
- Controls a small door that opens/closes to allow cold air to flow from the freezer to the refrigerator section.
- Dual switch design, each switch with (3) terminals.
- Synchronous, clockwise TH-50B motor.
- Commonly used on side by side refrigerators.
- Includes (1) Damper and Motor Control with 2-Wire Harness.
Specifications:
- Color: White / Gray / Black / Red.
- Material: Styrofoam / Plastic / Metal / Foam.
- Motor Electrical Specs: 120Vac, 4W, 4rpm, 60Hz.
- Dimensions: 4"L x 3"W x 5"H.
- Additional Dimensions: Harness measures approx. 4-5/8"L.
