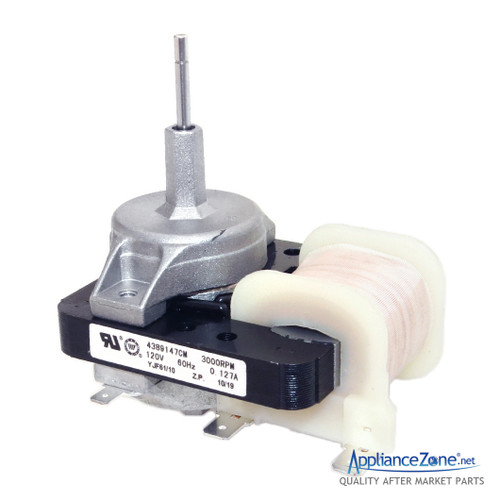

Replacement evaporator fan motor used for some Amana, Crosley, Danby, Maytag, and Whirlpool refrigerator models.
Directly Replaces: WP3-60336-001, 3600336001, 3-60336-001, 4390914, 68001613, UDQR002C2L, 1621561, AP4539455, AP6007509, EAP2578368, PD00003537, PS2578368, PS11740626.
Features:
- The evaporator motor pulls air through the evaporator coils to remove heat from the circulating air within the unit.
- Includes (1) Evaporator Fan Motor with 2-Wire Harness and 3-Prong Plug.
Specifications:
- Color: Marbled White and Gray.
- Material: Plastic / Metal.
- Finish: Glossy.
- Electrical Specs: 115VAC, 60Hz, 4.2W.
- Dimensions: 3-3/8"L x 3-1/2"W x 2-3/8"H.
- Additional Dimensions: 2-Wire harness and plug measure approx. 13-1/8"L.
Type your model number into the box to filter down the compatible models. How do I find my model number?
Don't see your model listed? Complete this form for help with finding the right part.
3 Reviews
-
Motor for whirlpool
Most reasonably priced part on the internet, and I looked everywhere. Fast shipping.
-
Evaporator fan replacement
The actual part I replaced was a panasonic brand, but this motor fit just fine. The wiring harness was different but all I had to do was splice the blue and white wires and it worked perfectly. My actual problem turned out to be the fan itself had slipped down on the shaft and the blades were being chewed up by the nuts holding the motor to the mounting bracket.
-
Freezer Fan
Worked great, shipped faster than expected!
