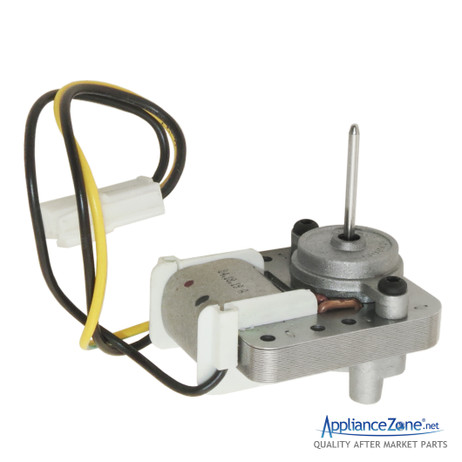

Replacement evaporator fan motor used for some Crosley, Electrolux, Frigidaire, Gibson, Kelvinator, Kenmore, Tappan, and White-Westinghouse refrigerator and freezer models.
Directly Replaces: 297250000, 216914200, 216934100, 297309000, 5304442624, 7216914200, 7216934100, 7297250000, SM2500, 2026100, AH2349477, AH3502361, AP5323819, AP4368950, EA3502361, EA2349477, EAP2349477, PD00074129, PS2349477, PS3502361.
Features:
- The evaporator motor pulls air through the evaporator coils to remove heat from the circulating air within the unit.
- Mounting screws holes on the motor do not come threaded from the factory. You must re-use the old self tapping screws.
- Rear mount.
- Includes (1) Evaporator Fan Motor with 3-Wire Harness and Plug.
Specifications:
- Color: Gray / White / Black / Yellow.
- Material: Plastic / Metal.
- Electrical Specs: 115VAC, 60Hz, 8W, 0.18A, Min-20degF, Cl.A.
- Dimensions: 2-5/8"L x 2-5/16"W x 2-3/4"H.
- Additional Dimensions: Harness and plug extend 8-1/4"L from motor.
